Dell Pro Thunderbolt 4 Smart Dock - SD25TB4
Dell Pro Thunderbolt 4 Smart Dock - SD25TB4
Dell Pro Thunderbolt 4 Smart Dock - SD25TB4
Dell Pro Thunderbolt 4 Smart Dock - SD25TB4
Dell

Pro Thunderbolt 4 Smart Dock - SD25TB4

SKU: 210-BRQK
+-
$274.99
Add to cart
Special Order
  • Overview
    • Take on intensive workloads with the latest Thunderbolt 4 smart dock delivering up to 130W of power and remote management capabilities.

Product details

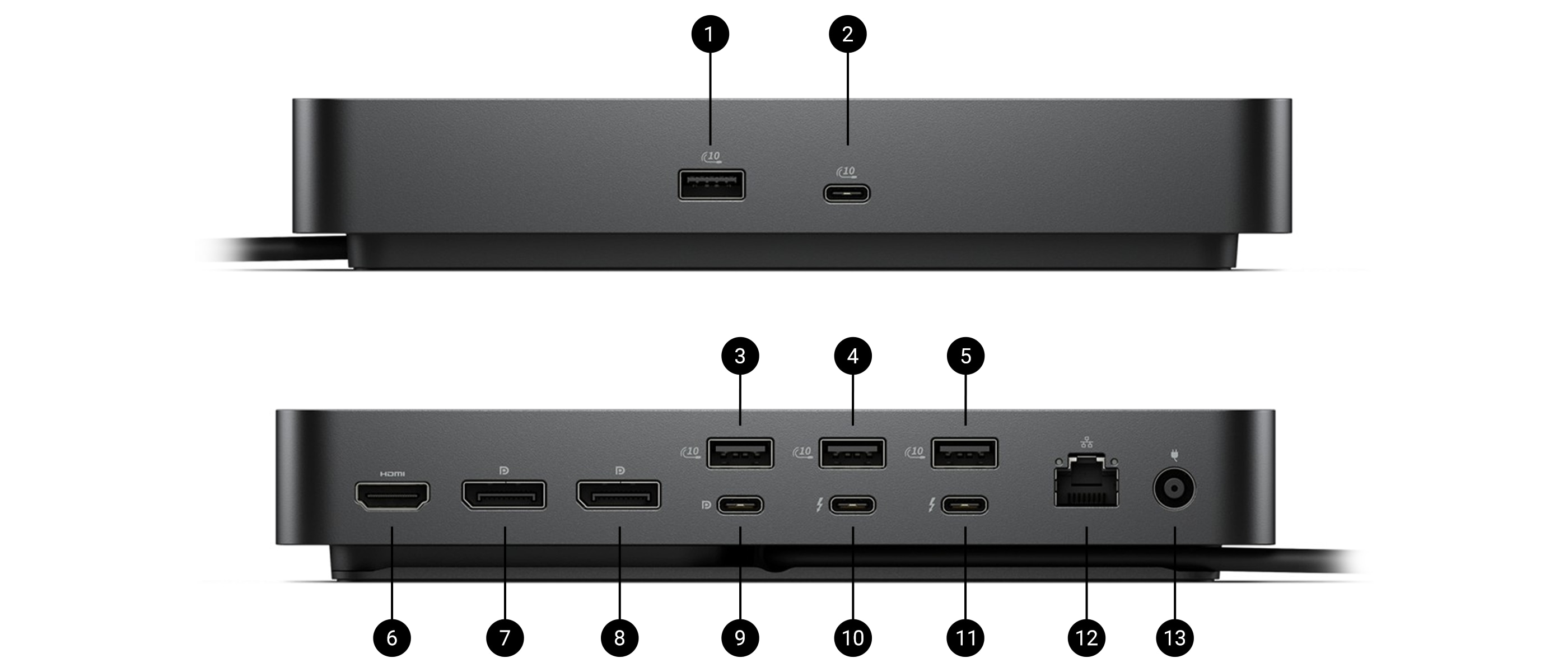

Ports and slots

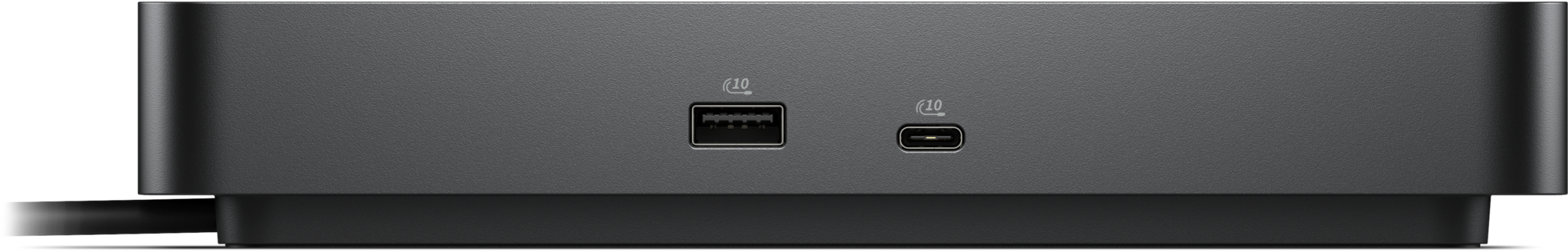

Front side



  1. USB-A 3.2 Gen 2 with
    PowerShare
  2. USB-C 3.2 Gen 2

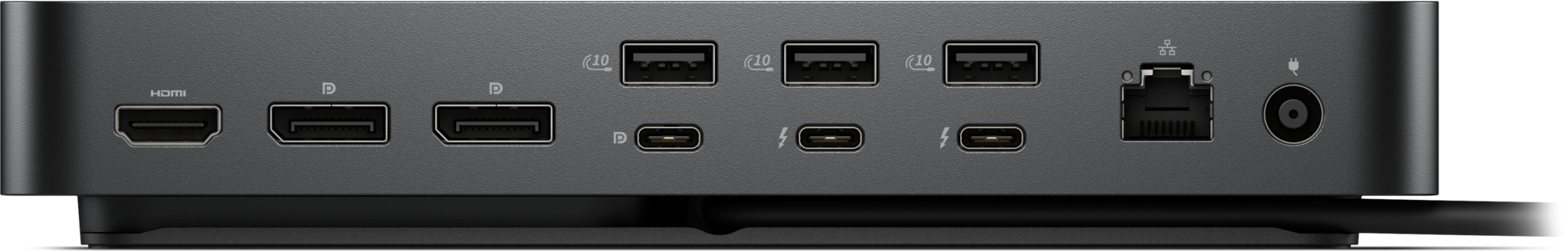

Rear side



  1. USB-A 3.2 Gen 2 with
    PowerShare
  2. USB-A 3.2 Gen 2 with
    PowerShare
  3. USB-A 3.2 Gen 2 with
    PowerShare
  4. HDMI 2.1
  5. DisplayPort 1.4



  1. DisplayPort 1.4
  2. USB-C 3.2 Gen 2 Multifunction DisplayPort 1.4
  3. Thunderbolt 4
  4. Thunderbolt 4
  5. 2.5 Gigabit Ethernet (RJ45)
  6. Power In

Tech Specs

Technical Information
Connectivity Technology
Wired
Number of Displays Supported
4
Management Features
Host PC Management
  • Intel® AMT over Thunderbolt™ with select Intel® vPro® PCs
  • MAC address pass-through
  • PXE Boot
  • Dock Power Button Sync
  • Wake-On-LAN
  • WLAN to LAN switch
  • Kernel Direct Memory Access (DMA) protection
Dock Management Features
  • Remote firmware updates without a PC
  • Host-based firmware updates
  • Firmware update on disconnect
  • Port Disablement independent of PC
Device Supported
Notebook
Video Resolution
DP1.4 / DP2.1 with Display Stream Compression
Up to:
  • 4 x 4K (3840x2160) @ 60Hz
  • 3 x 4K (3840x2160) @ 60Hz
  • 2 x 6K (6144 x 3456) @ 60Hz
  • 1 x 8K (7680 x 4320) @ 60Hz
DP1.4 without Display Stream Compression
Up to:
  • 4 x QHD (2560x1440) @ 60Hz
  • 3 x WQHD (3440 x 1440) @ 60Hz
  • 2 x 4K (3840x2160) @ 60Hz
  • 1 x 5K WUHD (5120 x 2160) @ 60Hz
Network & Communication
Ethernet Technology
RJ45 Ethernet port, 2.5GbE
Interfaces/Ports
Interfaces
Video interfaces
  • 2 x DP1.4
  • 1 x HDMI 2.1
  • 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
  • 2 x Thunderbolt 4
USB Ports (Data Only)
  • 4 x USB-A 3.2 Gen 2 (10 Gbps)
  • 1 x USB-C 3.2 Gen 2 (10 Gbps)
USB Ports (Power)
  • 4 x USB-A 3.2 Gen 2 (4.5W each)
  • 1 x USB-C 3.2 Gen 2 (15W)
  • 1 x USB-C Multi-function DisplayPort (7.5W)
  • 2 x Thunderbolt 4 (15W each)
  • All deliver power with or without PC
USB Power Delivery
  • 130W (Dell systems)
  • 96W (non-Dell systems)
Software
Operating System Supported
  • Windows 10
  • Windows 11
  • Ubuntu
  • Red Hat Enterprise Linux
  • ChromeOS
  • macOS
Power Description
Maximum Power Supply Wattage
180W
Physical Characteristics
Height
8.07"
Width
3.54"
Depth
1.39"
Weight (Approximate)
1.28lb
Miscellaneous
Package Contents
  • Docking Station
  • Power Adapter and Power Cord
  • Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
Kensington Security Slot
Yes
Warranty
Limited Warranty
3 Year
Additional Warranty Information
  • 3-Year Limited Hardware Warranty with Advanced Exchange
  • Additional 4- & 5-year warranty optional
Quick Specs
Product Type
Docking Station
Docking Interface
Thunderbolt 4™ (Type-C Connector)
Video Interfaces
  • 2 x DP1.4
  • 1 x HDMI 2.1
  • 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
  • 2 x Thunderbolt 4
Dimensions (WxDxH)
3.54" x 1.39" x 8.07"
Weight
1.28 lb
Color
N/A
Networking
RJ45 Ethernet port, 2.5GbE
Power
  • 130W (Dell systems)
  • 96W (non-Dell systems)
Manufacturer Warranty
3-Year Limited Hardware Warranty with Advanced Exchange
