Product details

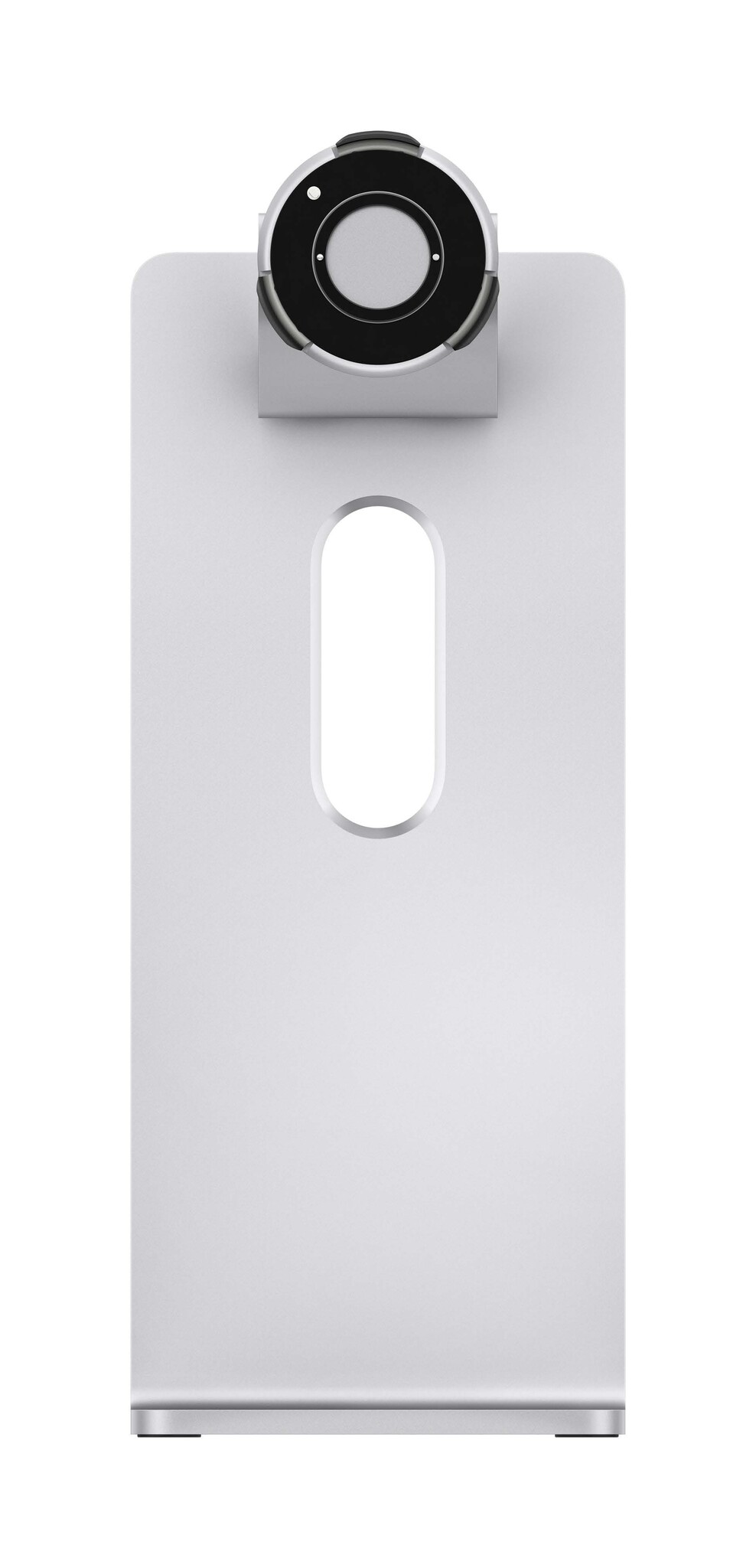

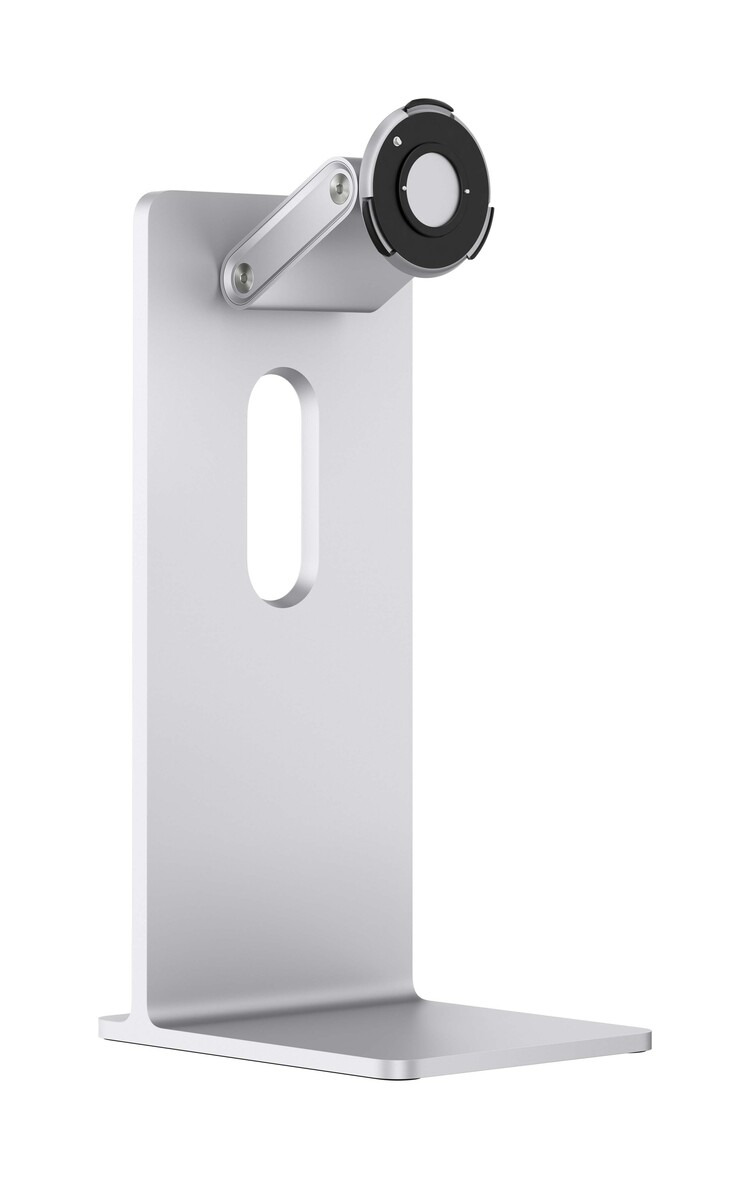

Pro Stand.

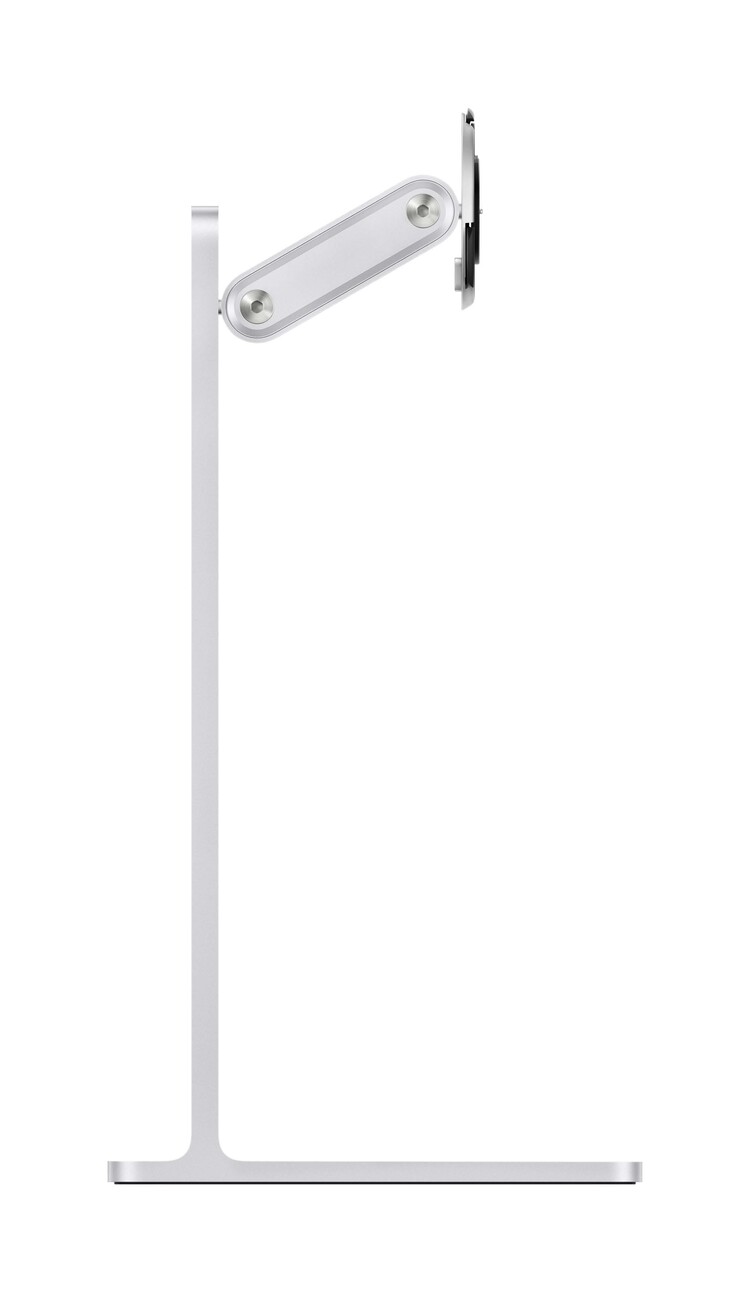

Height adjustment and tilt. With precision tilting and 120 mm of total height adjustment, Pro Stand helps Pro Display XDR adapt to any viewing condition. When you adjust the height, the angle of the display stays true. Thanks to a highly sophisticated mechanism in the arm, the display feels weightless, moves effortlessly, and stays exactly where you want it.
Rotation
Pro Stand gives you the ability to easily transition between landscape and portrait whenever you want. Change the screen’s orientation by simply unlocking the slider and turning the display counterclockwise. This flexibility allows the display to quickly adapt to a pro’s changing content.
Modularity

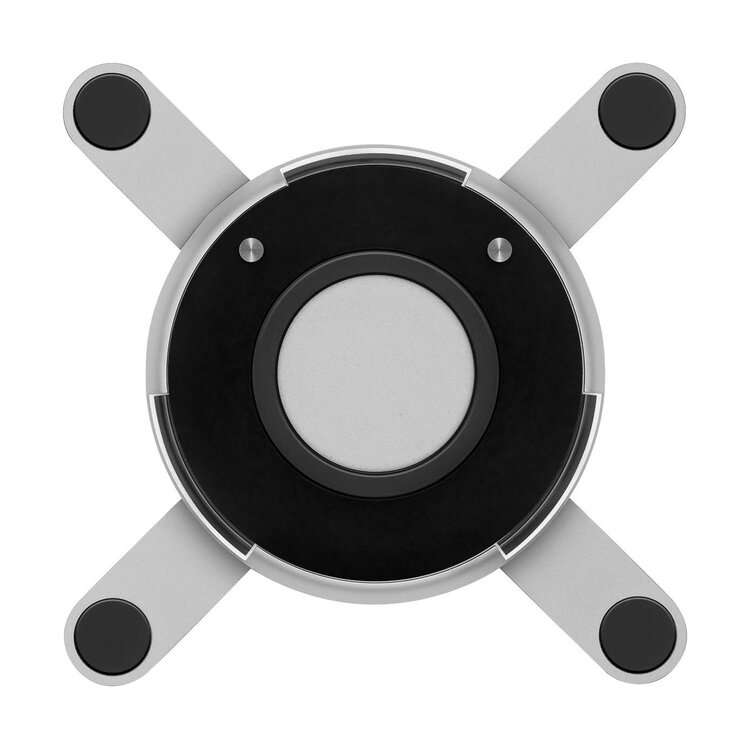

The magnetic connector on Pro Stand attaches to a polar-opposite magnet on the back of Pro Display XDR. These magnets guide the connection while latches automatically engage to securely lock the stand to the display. Detaching the display is as easy as unlocking the slider.
Technical Specifications
Stand range of motion
Height adjustment: the system allows for a total height adjustment of 120 mm (60 mm in each direction from the midpoint)
Orientation: landscape or portrait
Tilt: –5° to +25°
Width: 7.1 inches (18.0 cm)
Height (arm 0º, tilt 0º): 17.0 inches (43.3 cm)
Mac Marketing Copy and Legal Disclaimers, June 2023 58
Height (arm 45º, tilt 25º): 19.6 inches (49.7 cm)
Depth: 9.3 inches (23.6 cm)
Weight: 9.5 pounds (4.3 kg)*
Height (arm 45º, tilt 25º): 19.6 inches (49.7 cm)
Depth: 9.3 inches (23.6 cm)
Weight: 9.5 pounds (4.3 kg)*
Compatibility
• Pro Display XDR
Legal
*Weight varies by configuration and manufacturing process.
