Product details
Designed for use with Dell Pro Max and Pro Max Premium laptops, including the High Performance configuration.
Tech Specs
- Connectivity Technology: Wired
- Device Supported: Notebook
- Cable Length: 32"
- Number of Displays Supported: 4
- Screen Mode Supported: QHD @ 60Hz, WQHD @ 60Hz, 4K @ 60Hz, 5K @ 60Hz, 6K @ 60Hz, 8K @ 60Hz, 4K @ 120Hz
- Supported Resolutions: 2560 x 1440, 3440 x 1440, 3840 x 2160, 5120 x 2160, 6144 x 3456, 7680 x 4320
- Maximum Data Transfer Rate: 1.25 GB/s
- Security Slot Type: Noble Wedge, Kensington
- Power Delivery: 300W (Dell), 240W (non-Dell)
- Ethernet Technology: 2.5 Gigabit Ethernet
- Host Interface: Thunderbolt 5
- Total USB Ports: 6 (4 x USB-A 3.2 Gen 2, 2 x USB-C 3.2 Gen 2)
- DisplayPorts: 2 (Version 2.1)
- HDMI Ports: 1 (Version 2.1)
- Thunderbolt Ports: 2
- Operating Systems Supported: Windows 10/11, Ubuntu 24.04, macOS, Red Hat Enterprise Linux 9.7, ChromeOS 141
- Power Supply Wattage: 330 W
- Dimensions (HxWxD): 8.07" x 3.54" x 1.39"
- Weight: 1.39 lb
- Package Contents: SD25TB5 Docking Station, Power Adapter, Power Cord, Documentation
- Warranty: 3-Year Limited Hardware Warranty with Advanced Exchange

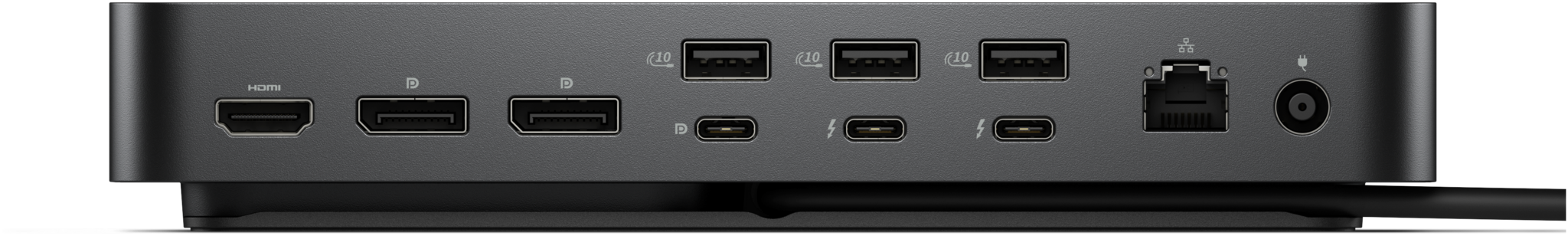

Ports and slots
